24B36H3

23.8 吋 120Hz 廣視角顯示器

流暢升級，視野無限。24B36H3 配備 Full HD 解析度與 IPS 廣視角面板，提供清晰細膩的影像品質。搭載 120Hz 更新率與 1ms 快速反應時間，帶來極致流暢的視覺體驗。升級的三邊極窄邊框設計，結合超高動態對比度 (Mega DCR)，呈現更深邃的色彩層次與更寬廣的視野。IPS 面板具備 178/178 度廣視角，無論從哪個角度觀看，都能維持一致的色彩與影像品質。

...

1920 × 1080 (FHD)
120Hz
1ms
AdaptiveSync
IPS
Upgraded 3-Sided Frameless

Designed with wide viewing angles

IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.

Enjoy stepped up performance

With a 120Hz refresh rate, every frame is redered sharply and in smooth succession, so you can line up your work and play accurately and appreciate high speed in all condition.

Instant response times

A pixel response time of 1ms means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting. Choose the right path to gaming success, and never let a slow display stop you.

Upgraded 3-Sided Frameless

Embrace the limitless potential of the new upgraded 3-sided frameless, maximising viewing size with bezels more narrow than ever before to create the pinnacle of beauty, form, and function. Harness the full potential of this new feature by using it as part of a multi-monitor setup, where you can experience unrivalled seamlessness and elegance between screens.

A universally respected anti-tearing solution

Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.

Protect your eyes from screen flicker

Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.

Adaptable and convenient setup

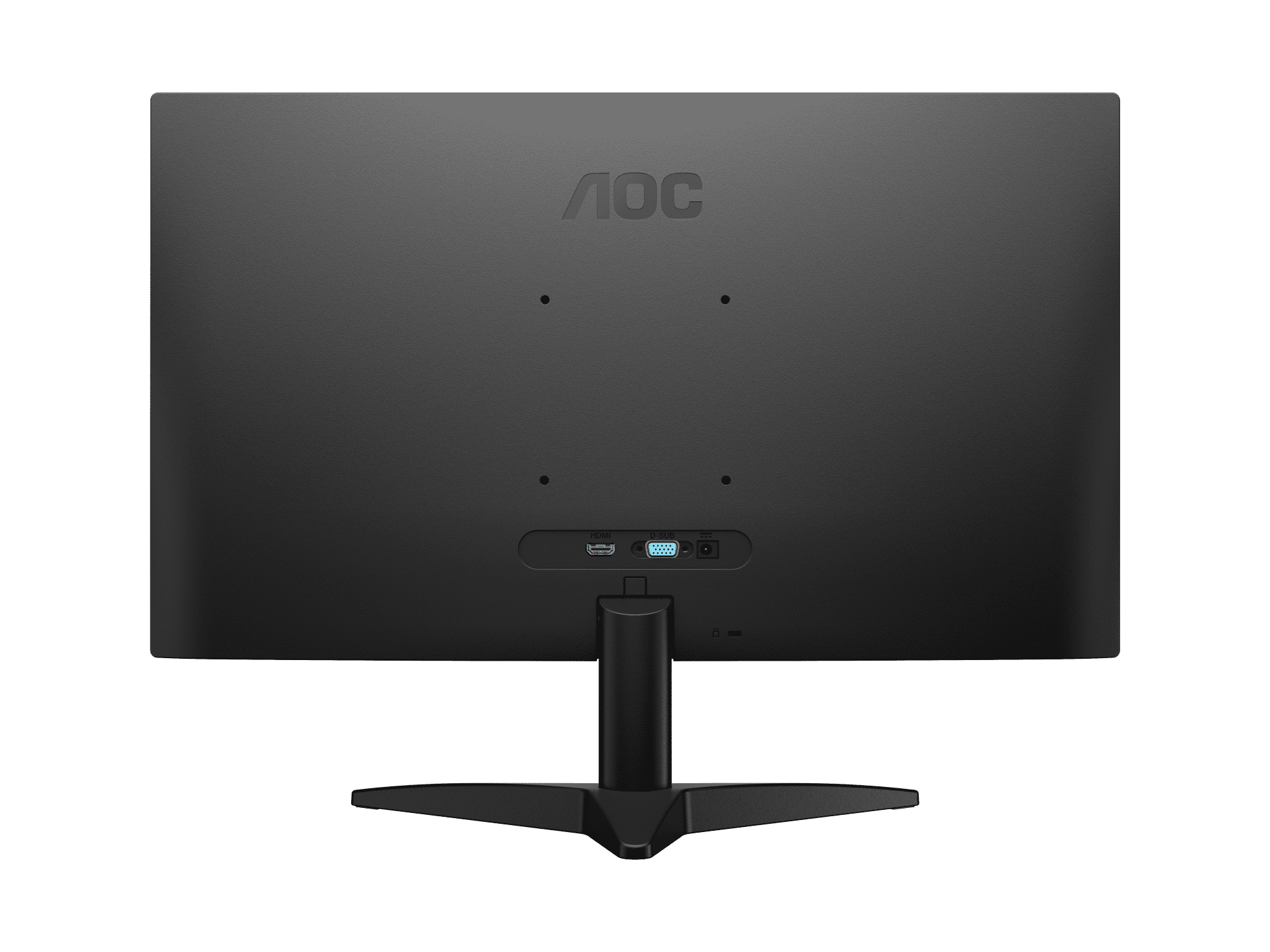

Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.

Specifications

Model name	24B36H3
Panel	23.8" / IPS
Pixel Pitch (mm)	0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm)	527.04 (H) × 296.46 (V)
Brightness (typical)	300 cd/m²
Contrast Ratio	1500 : 1 (typical) / Mega DCR
Response Time	4ms GtG / 1ms MPRT
Viewing Angle	178° (H) / 178° (V) (CR > 10)
Color Gamut	NTSC 101% (CIE1976) / sRGB 116% (CIE1931)
Color Accuracy	-
Optimum Resolution	1920 × 1080 @ 120Hz – HDMI; 1920 × 1080 @ 75Hz – VGA
Display Colors	16.7 Million
Signal Input	VGA × 1, HDMI 1.4 × 1
HDCP Version	-
USB Hub	No
Power Supply	External 19VDC, 1.31A
Power Consumption (typical)	17W
Speakers	No
Line in & Earphone	No
Wall-Mount	100mm × 100mm
Adjustable Stand	Tilt: -5° ~ 23°
Product without Stand (mm)	316.2 (H) × 542.4 (W) × 34.7 (D)
Product with Stand (mm)	410.0 (H) × 542.4 (W) × 198.0 (D)
Packaging (mm)	420 (H) × 615 (W) × 111 (D)
Product without Stand (kg)	2.15
Product with Stand (kg)	2.45
Product with Packaging (kg)	4.43
Cabinet Color	Black
Regulatory Approvals	CE / FCC / RoHS
* Design and specifications are subject to change without notice.
